Bayesian 101

Overview

This module covers a crash course in Bayesian statistics. While many adaptive trial elements can be done with frequentist methods, Bayesian methods provide additional flexibility. We will introduce the basics of the Bayesian approach to statistics and cover a brief example analysis of a clinical trial using Bayesian methods.

Slide Deck

You can also download the original PowerPoint file.

Code Examples in R

Software Options

There are lots of statistical packages and approaches that we can use to either run Bayesian models in R, or to connect R with external software to implement the models. Some options include:

brms package: implements the Stan programming language within R, syntax is similar to the lme4 package, this is our focus for Bayesian examples
rstan and rstanarm packages: implements the Stan programming language within R, rstanarm uses standard glm syntax, runs more quickly than brms since models are pre-compiled
bayestestr package: can provide Bayes factors and works with rstanarm, brms, and BayesFactor
R2jags, rjags, runjags packages: implements JAGS (just another Gibbs sampler) which allows for non-gradient sampling, JAGS is one of the “original” approaches for implementing Bayesian analyses via software (that I remember), can be a little clunkier than other options

It is worth noting that within each software distributions may use different parameterizations, so caution should be taken to ensure the desired prior values are used. For example, the normal distribution in JAGS uses the precision (i.e., \(\tau = \frac{1}{\sigma^2}\)), whereas Stan uses the standard deviation (i.e., \(\sigma\)).

Dr. Kruschke has a nice introduction to Bayesian textbook that includes some instructions for installing software for Bayesian analyses. You may also be interested in exploring the textbook for more background on Bayesian theory, methods, and implementation.

Additionally, Stata and SAS (e.g., PROC MCMC and PROC GENMOD) include Bayesian options. These are detailed in “A practical guide to adopting Bayesian analyses in clinical research” for step-by-step guidance on their implementation.

Linear Regression Code from “A practical guide to adopting Bayesian analyses in clinical research”

This section provides the code from the published paper in R. The dataset for the paper is included in the corresponding GitHub repository hosted by Dr. Nichole Carlson, but can also be downloaded as CSV here for convenience: drugtrial.csv.

For simplicity, we focus on comparing priors across simple linear regression models, but the GitHub repository includes examples for multiple linear regression and logistic regression models as well. In this example, we have a continuous outcome of time to readiness for discharge (in minutes) that are compared by two randomized treatment groups (sufentanil (new treatment) versus IV fentanyl).

First, let’s load our packages and read in our data:

Code

# CALL LIBRARIES
library(brms) #Bayesian modeling capabilities
library(bayestestR) #particular Bayesian tests

# READ IN CLINICAL TRIAL DATA FROM PAPER
trial <- read.csv('../files/drugtrial.csv')

### CHECK OUT TOP ROWS OF DATA
## trial mini-data dictionary:
# rowid: trial ID
# in_phase_1_to_out_of_phase_2: time to readiness for discharge after arrival in PACU (minutes)
# sex_n: sex of participant (1=female, 0=male)
# groupn: randomized group (1=sufentanil, 0=IV fentanyl)
# blockn: preoperative nerve block used (1=yes, 0=no)
# proc_length_center: procedure length (minutes)

head(trial)

  rowid in_phase_1_to_out_of_phase_2 sex_n groupn blockn proc_length_center
1     1                           60     1      0      0              -37.8
2     2                           69     1      1      1              -10.8
3     3                          102     1      1      0              -57.8
4     4                          165     1      0      0               22.2
5     5                          115     1      1      0              140.2
6     6                          104     0      0      1               21.2

Frequentist Simple Linear Regression

For comparison sake, we can first fit our frequentist simple linear regression using the glm function:

Code

# Syntax: <name of model object> <- glm(<outcome variable> ~ <predictor variable>, data = <datasetname>, family=<distribution corresponding to model type>)
lin_reg <- glm(in_phase_1_to_out_of_phase_2 ~ groupn,
               data=trial,
               family='gaussian')

# Syntax: summary(<model object>) - function to show model parameter estimates/results
summary(lin_reg)


Call:
glm(formula = in_phase_1_to_out_of_phase_2 ~ groupn, family = "gaussian",
    data = trial)

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   94.364      5.289  17.842   <2e-16 ***
groupn         3.727      7.480   0.498     0.62
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for gaussian family taken to be 923.0682)

    Null deviance: 59306  on 65  degrees of freedom
Residual deviance: 59076  on 64  degrees of freedom
AIC: 641.9

Number of Fisher Scoring iterations: 2

Code

# Syntax: confint() - print confidence intervals in console
confint(lin_reg)

                2.5 %   97.5 %
(Intercept)  83.99771 104.7296
groupn      -10.93236  18.3869

brms Bayesian Simple Linear Regression Syntax

The general syntax for using brm is described below:

Code

# Syntax: using brm function for Bayesian modeling
#   <name of model object> <- brm(<outcome variable> ~ <predictor variable>,
#            data = <datasetname>,
#            family=<distribution corresponding to model type>,
#            prior = c(set_prior("<distribution(mean,SD)", class = "<name>")),
#            seed = <value - for reproducibility>,
#            init = <name of initial values list>,
#            warmup = <sets the # of burn-in iterations (those that will be 'thrown out')>,
#            iter = <# of total iterations for each chain including burn-in>
#            chains = <# of chains>,
#            cores = <#> to use for executing chains in parallel - for processing)

We also will create a set of initial values to use for each our simple linear regressions below:

Code

# Set initial starting values for chains by creating a list, will be used for all simple linear regressions
# Syntax: list(<model parameter> = <starting value>); be sure to list all parameters
inits <- list(
  Intercept = 0,
  sigma     = 1,
  beta      = 0 )

# Syntax: <new_list> <- list(<initial values list name>) - Create list of all initial values
list_of_inits <- list(inits, inits, inits)

brms SLR with Pseudo Vague Prior

In this example, we fit a “pseudo-vague” prior where \(\sigma^2 = 1000\) or, equivalently, \(\sigma = \sqrt{1000} = 31.62278\). Here we call the prior “pseudo-vague” because it turns out that while it seems like a large variance, since \(\beta_0 \sim N(\mu=0, \sigma=31.62278)\), there is some biasing towards a mean of 0.

Code

fit_lin_1 <-brm(in_phase_1_to_out_of_phase_2 ~ groupn,
                data=trial,
                family='gaussian',
                prior = c(set_prior("normal(0,31.62278)", class = "b"),
                          set_prior("normal(0,31.62278)", class ="Intercept"),
                          set_prior("inv_gamma(0.01,0.01)", class="sigma")),
                seed= 123,
                init=list_of_inits,
                warmup = 1000, iter = 10000, chains = 2, cores=4,
                save_pars = save_pars(all = TRUE))

# Summarize parameters
summary(fit_lin_1)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: in_phase_1_to_out_of_phase_2 ~ groupn
   Data: trial (Number of observations: 66)
  Draws: 2 chains, each with iter = 10000; warmup = 1000; thin = 1;
         total post-warmup draws = 18000

Regression Coefficients:
          Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept    93.05      5.34    82.48   103.53 1.00    18799    13379
groupn        3.55      7.42   -10.90    18.16 1.00    17970    13260

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma    30.71      2.75    25.89    36.59 1.00    19382    13421

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

Code

# Obtain highest density posterior interval
bayestestR::hdi(fit_lin_1, ci=0.95)

Highest Density Interval

Parameter   |          95% HDI
------------------------------
(Intercept) | [ 82.66, 103.66]
groupn      | [-10.79,  18.24]

Code

# Syntax: plot() - print Bayesian diagnostic plots to console, plots in one figure

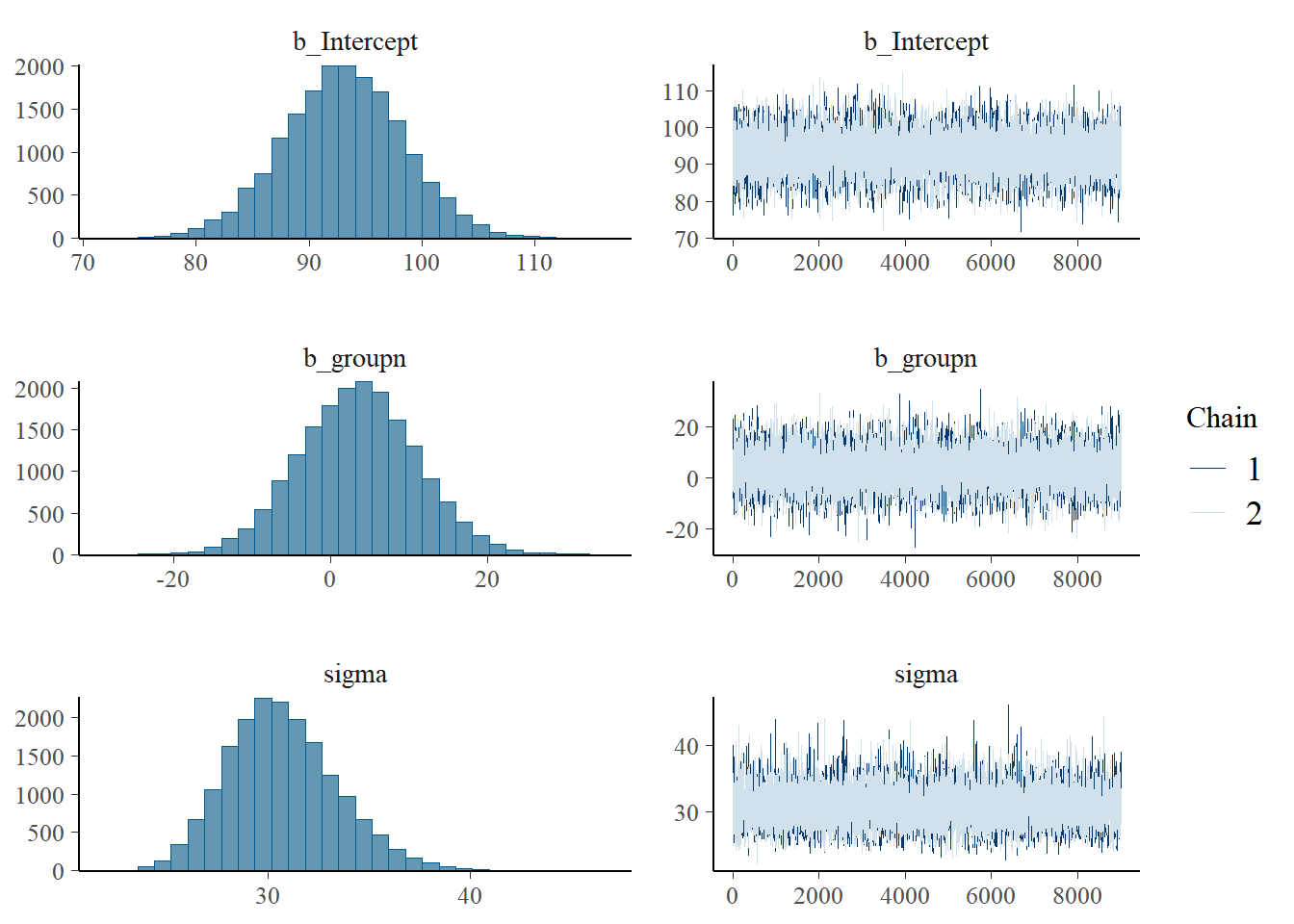

plot(fit_lin_1)

Code

# Request plots individually

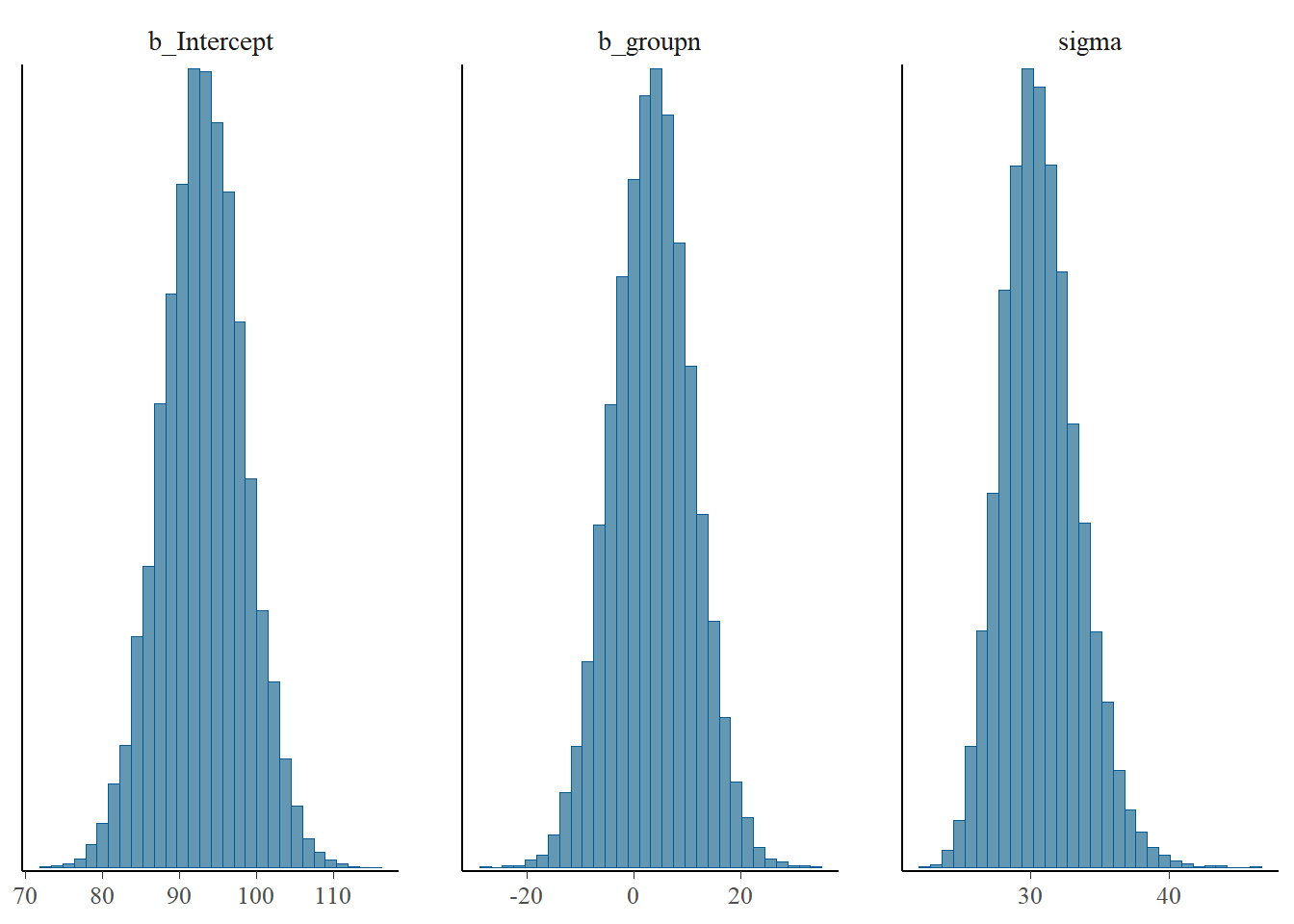

mcmc_plot(fit_lin_1, type="hist") #histogram

Warning in geom_histogram(set_hist_aes(freq), fill = get_color("mid"), color =
get_color("mid_highlight"), : Ignoring unknown parameters: `size`

Code

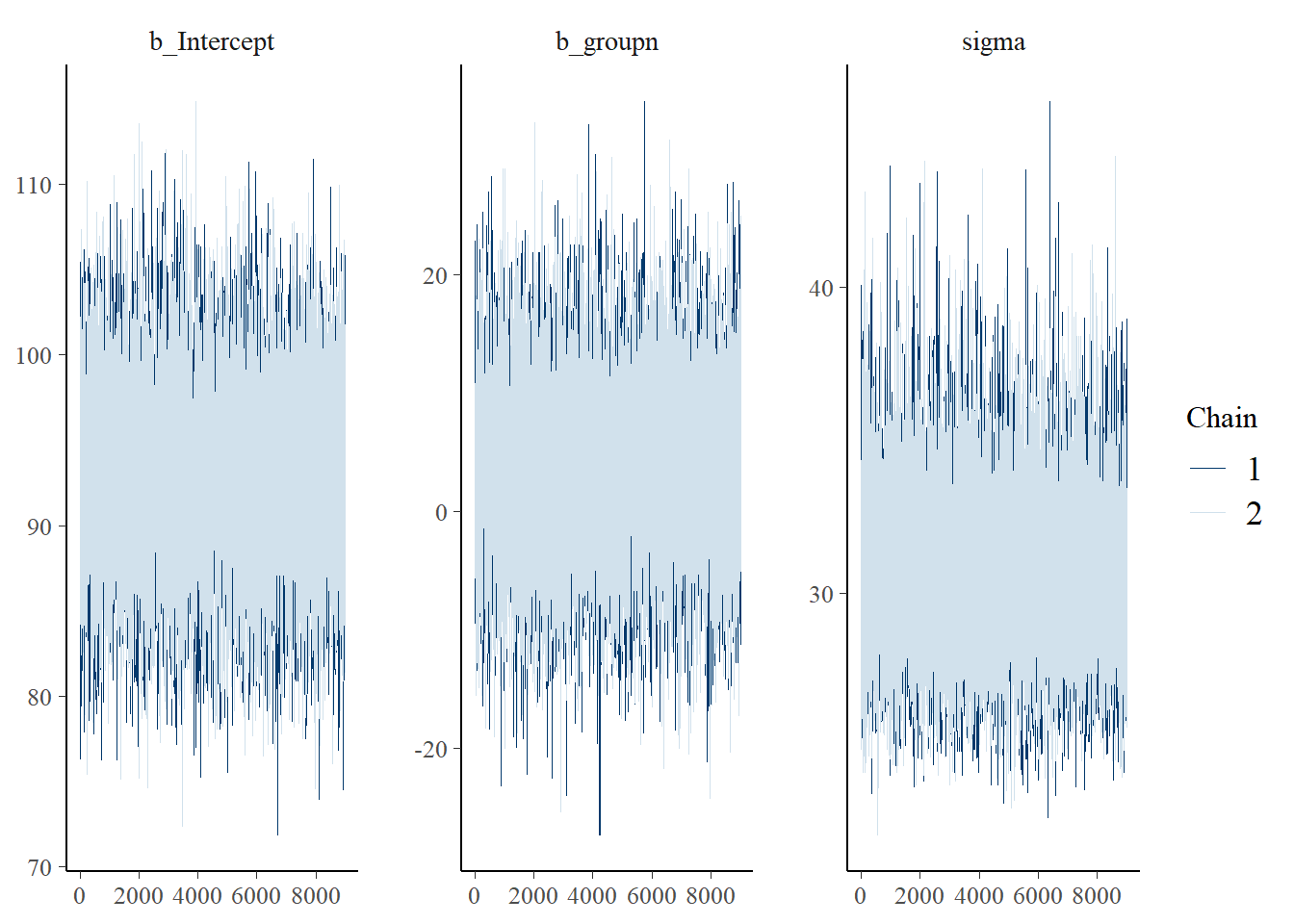

mcmc_plot(fit_lin_1, type="trace") #trace plot

Code

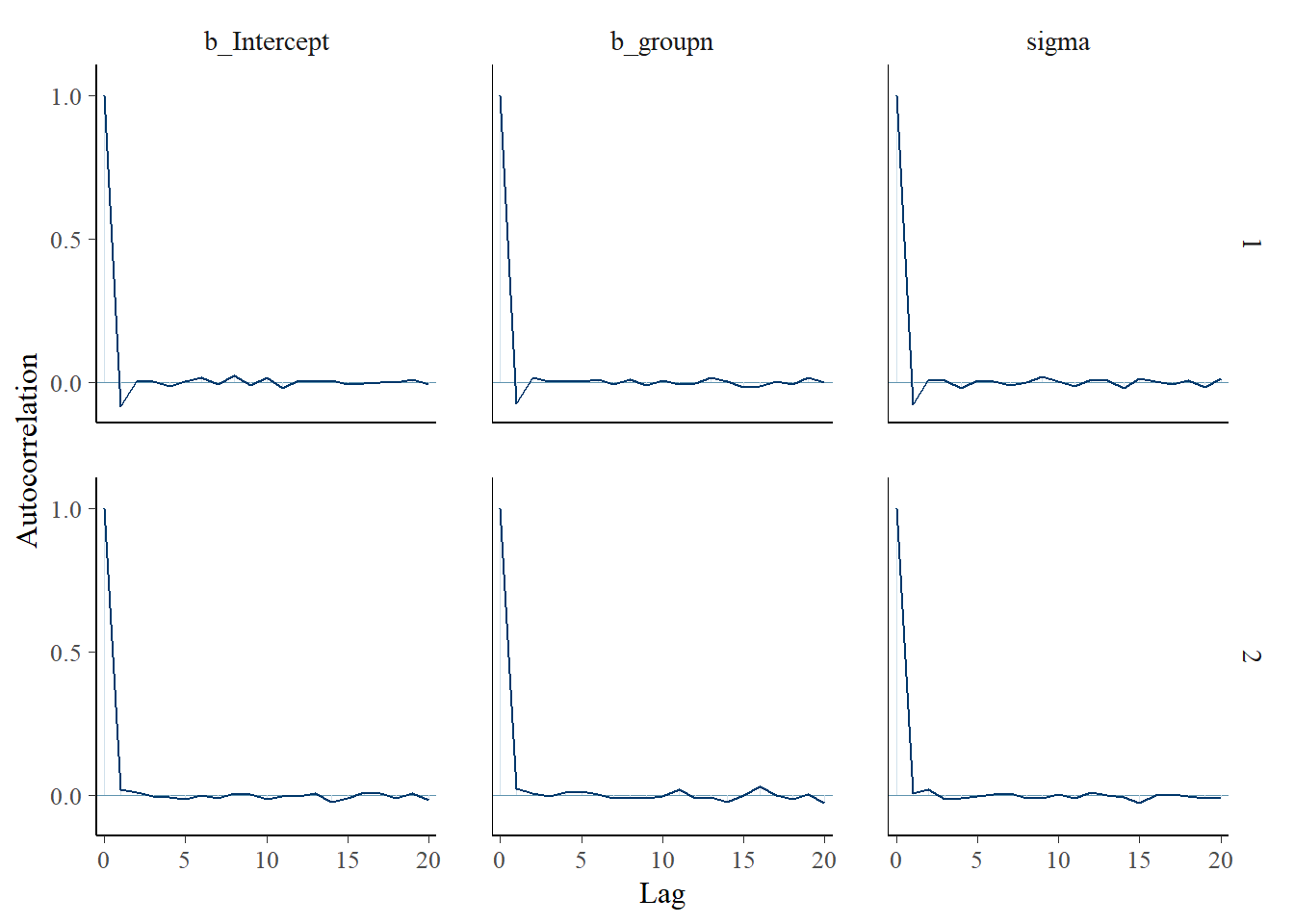

mcmc_plot(fit_lin_1, type="acf") #autocorrelation plot

Code

# Syntax: prior_summary() - print priors used in console
prior_summary(fit_lin_1)

                prior     class   coef group resp dpar nlpar lb ub       source
   normal(0,31.62278)         b                                            user
   normal(0,31.62278)         b groupn                             (vectorized)
   normal(0,31.62278) Intercept                                            user
 inv_gamma(0.01,0.01)     sigma                               0            user

Code

# Extract posterior chains
post_samp <- as_draws(fit_lin_1)

# Combine and extract drug group posterior estimates (can add more list items if more than 2 chains)
xpost <- c(post_samp[[1]]$b_groupn, post_samp[[2]]$b_groupn)

# Calculate the posterior probability that our group predictor is less than 0
mean(xpost < 0)

[1] 0.3167222

brms SLR with Vague Prior

In this example, we fit a “vague” prior where \(\sigma^2 = 10000\) or, equivalently, \(\sigma = \sqrt{100} = 100\).

Code

fit_lin_2 <- brm(in_phase_1_to_out_of_phase_2 ~ groupn,
                 data=trial,
                 family='gaussian',
                 prior = c(set_prior("normal(0,100)", class = "b"),
                           set_prior("normal(0,100)", class = "Intercept"),
                           set_prior("inv_gamma(0.01,0.01)", class="sigma")),
                 seed= 123,
                 init=list_of_inits,
                 warmup = 1000, iter = 10000, chains = 2, cores=4)

summary(fit_lin_2)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: in_phase_1_to_out_of_phase_2 ~ groupn
   Data: trial (Number of observations: 66)
  Draws: 2 chains, each with iter = 10000; warmup = 1000; thin = 1;
         total post-warmup draws = 18000

Regression Coefficients:
          Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept    94.28      5.43    83.71   105.04 1.00    16878    12729
groupn        3.63      7.60   -11.51    18.32 1.00    17708    11472

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma    30.74      2.75    25.89    36.61 1.00    17210    13095

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

Code

bayestestR::hdi(fit_lin_2, ci=0.95)

Highest Density Interval

Parameter   |          95% HDI
------------------------------
(Intercept) | [ 83.20, 104.45]
groupn      | [-11.06,  18.71]

Code

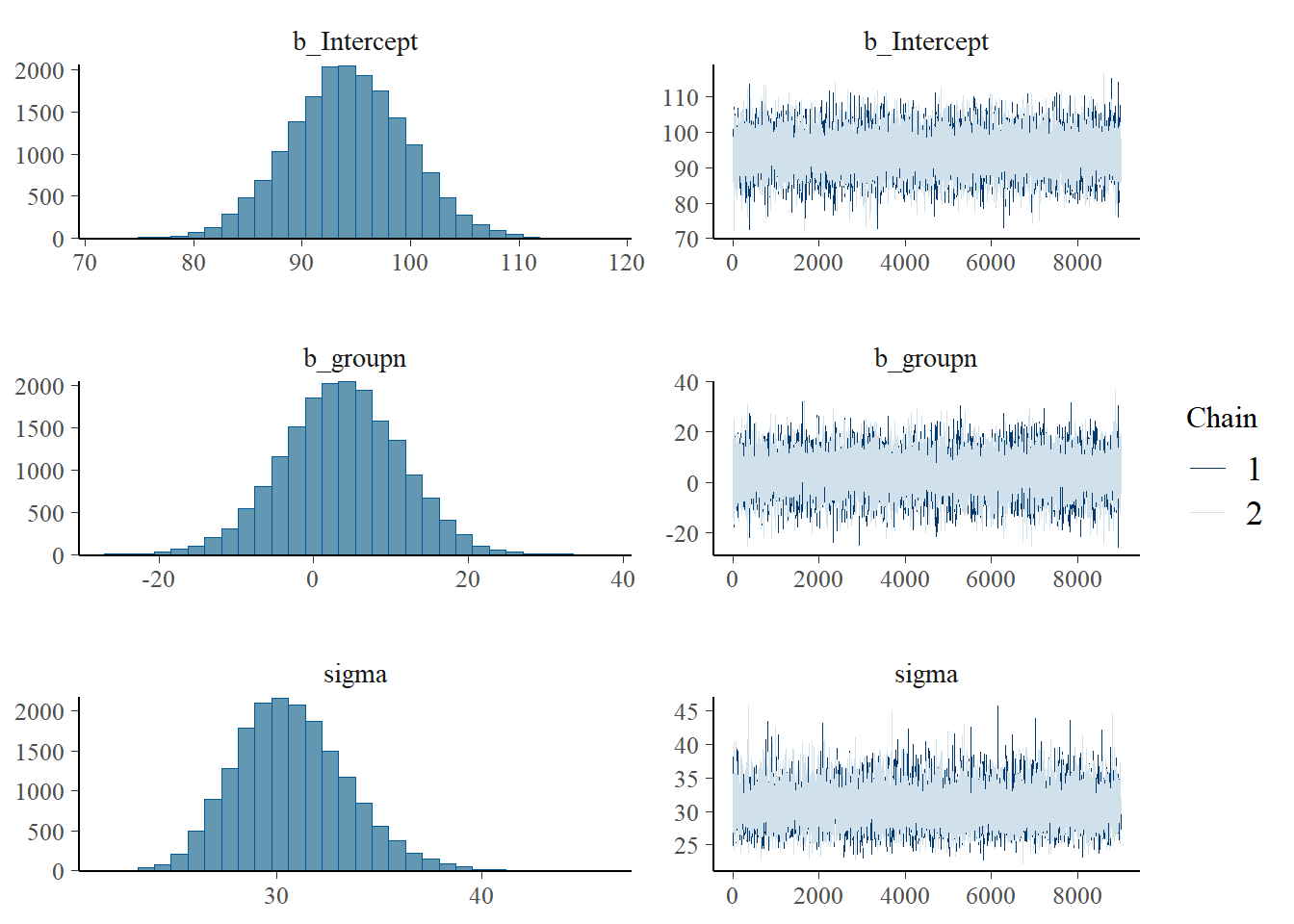

plot(fit_lin_2)

Code

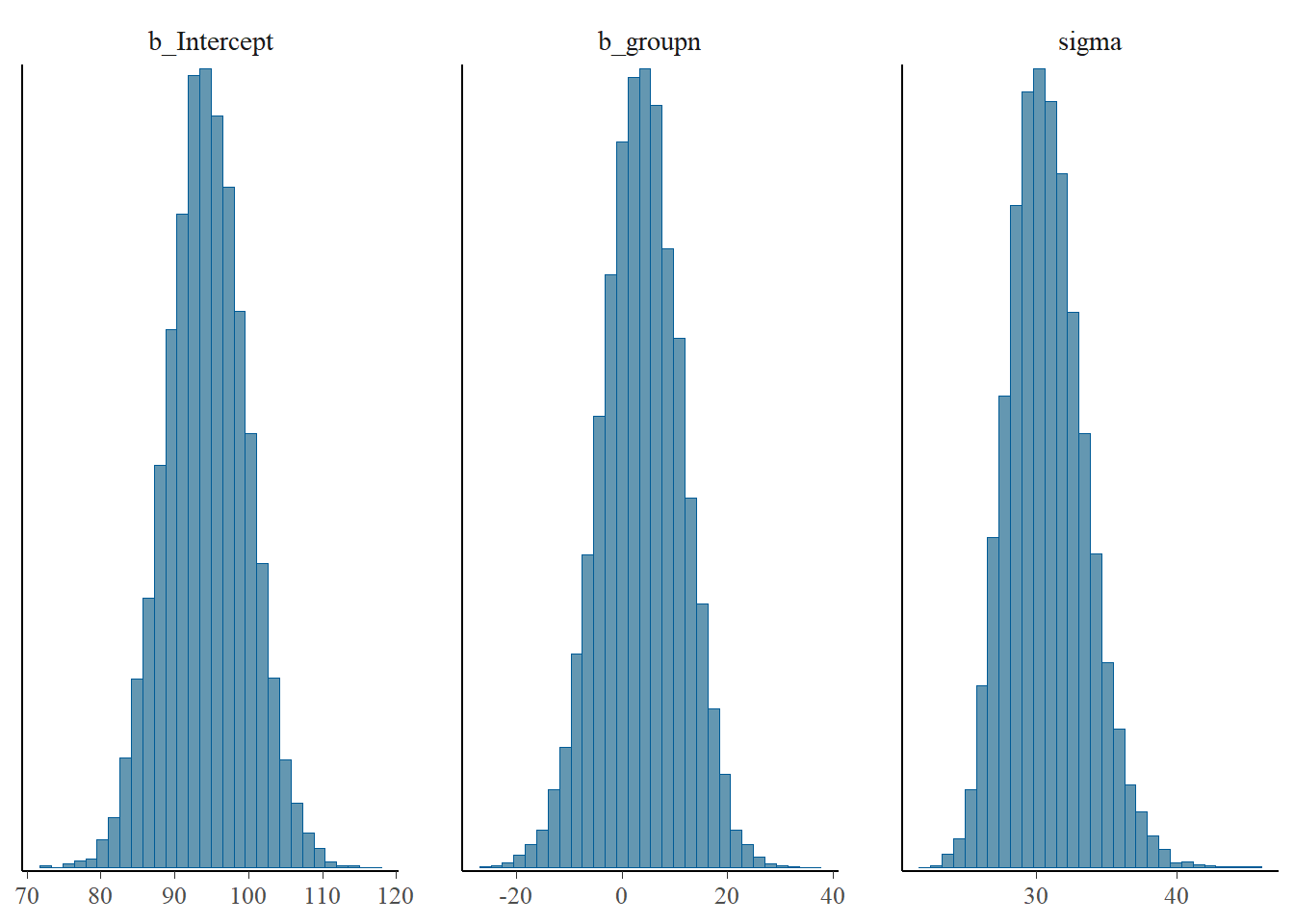

mcmc_plot(fit_lin_2, type="hist")

Warning in geom_histogram(set_hist_aes(freq), fill = get_color("mid"), color =
get_color("mid_highlight"), : Ignoring unknown parameters: `size`

Code

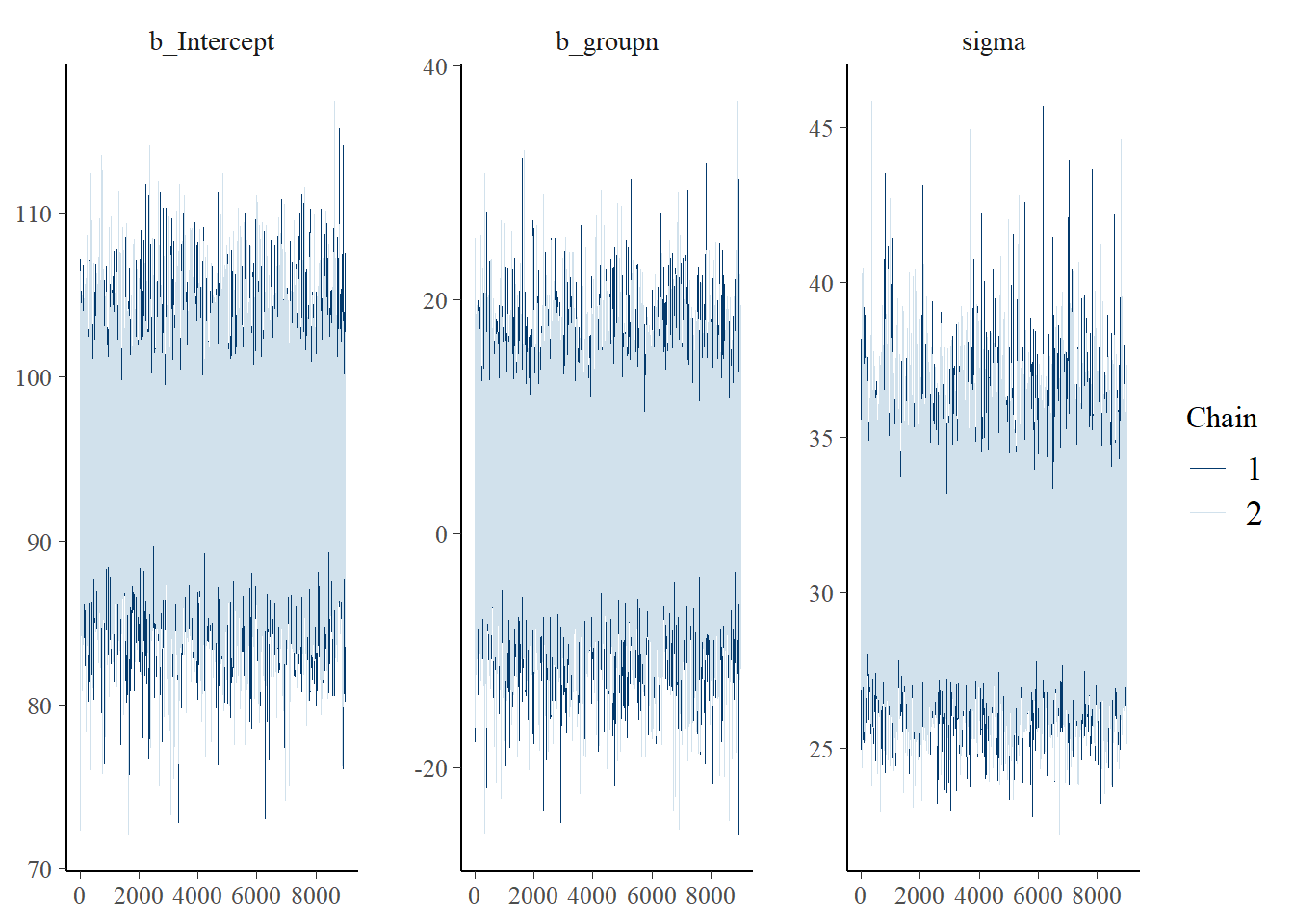

mcmc_plot(fit_lin_2, type="trace")

Code

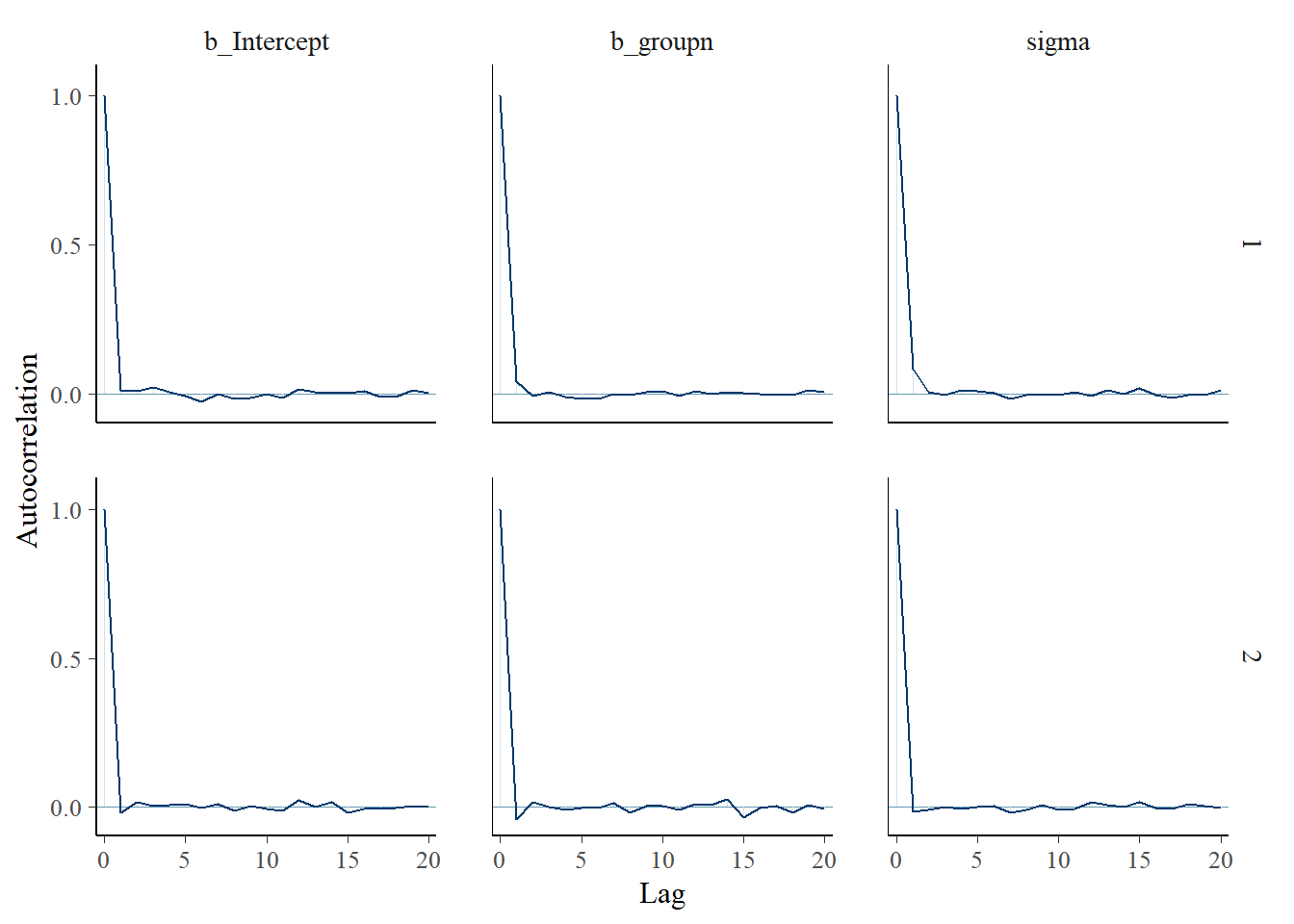

mcmc_plot(fit_lin_2, type="acf")

Code

prior_summary(fit_lin_2)

                prior     class   coef group resp dpar nlpar lb ub       source
        normal(0,100)         b                                            user
        normal(0,100)         b groupn                             (vectorized)
        normal(0,100) Intercept                                            user
 inv_gamma(0.01,0.01)     sigma                               0            user

Code

# OPTION 1 for calculating posterior probabilities:
# Extract posterior chains
post_samp2 <- as_draws(fit_lin_2)
xpost2 <- c(post_samp2[[1]]$b_groupn, post_samp2[[2]]$b_groupn)

# Calculate the posterior probability that our group predictor is less than 0
mean(xpost2 < 0)

[1] 0.3117778

Code

# OPTION 2 for calculating posterior probabilities:
# Extract posterior chains
post_samp2 <- as_draws_df(fit_lin_2)

# Create an indicator for group < 0
post_samp2$indicator <- post_samp2$b_groupn<0

# Calculate the posterior probability
summary(post_samp2$indicator)

   Mode   FALSE    TRUE
logical   12388    5612

brms SLR with Optimistic Prior

In this example, we fit an “optimistic” prior on our treatment group such that \(\beta_1 \sim N(\mu=-30, \sigma=10)\). This was selected based on the estimates used for the power analysis in the original trial where it was estimated that a clinically meaningful difference would be a 30 minute reduction in readiness to discharge.

Code

fit_lin_3 <- brm(in_phase_1_to_out_of_phase_2 ~ groupn,
                 data=trial,
                 family='gaussian',
                 prior = c(set_prior("normal(-30,10)", class = "b", coef = "groupn"),
                           set_prior("normal(0,100)", class = "Intercept"),
                           set_prior("inv_gamma(0.01,0.01)", class="sigma")),
                 seed= 123,
                 init=list_of_inits,
                 warmup = 1000, iter = 10000, chains = 2, cores=4)
summary(fit_lin_3)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: in_phase_1_to_out_of_phase_2 ~ groupn
   Data: trial (Number of observations: 66)
  Draws: 2 chains, each with iter = 10000; warmup = 1000; thin = 1;
         total post-warmup draws = 18000

Regression Coefficients:
          Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept   100.48      4.99    90.87   110.33 1.00    14460    12578
groupn       -8.79      6.24   -21.28     3.14 1.00    14788    12967

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma    31.33      2.86    26.32    37.54 1.00    15824    13469

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

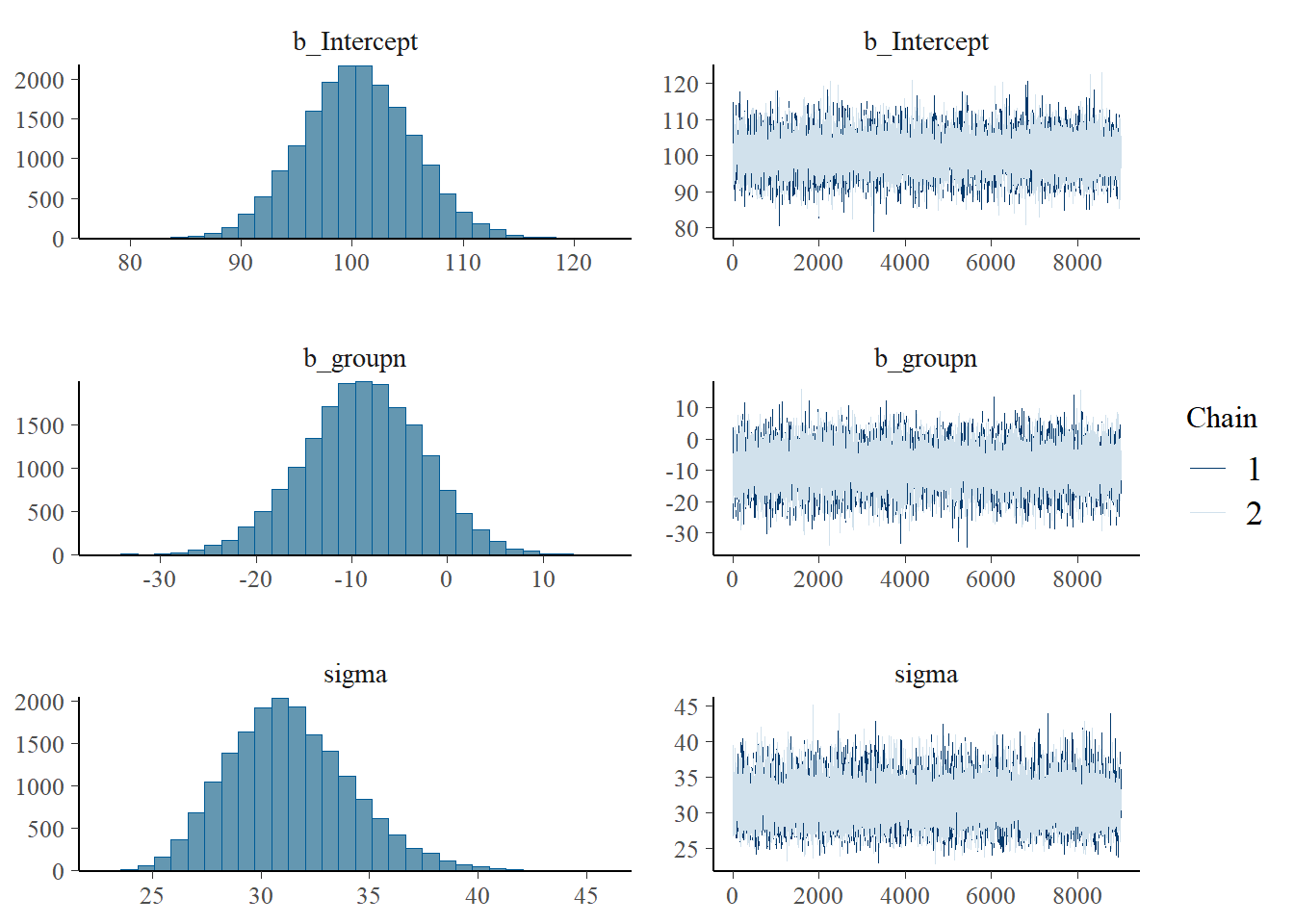

Code

bayestestR::hdi(fit_lin_3, ci=0.95) #get 95% HDP Credible Intervals

Highest Density Interval

Parameter   |          95% HDI
------------------------------
(Intercept) | [ 90.51, 109.89]
groupn      | [-20.89,   3.41]

Code

plot(fit_lin_3)

Code

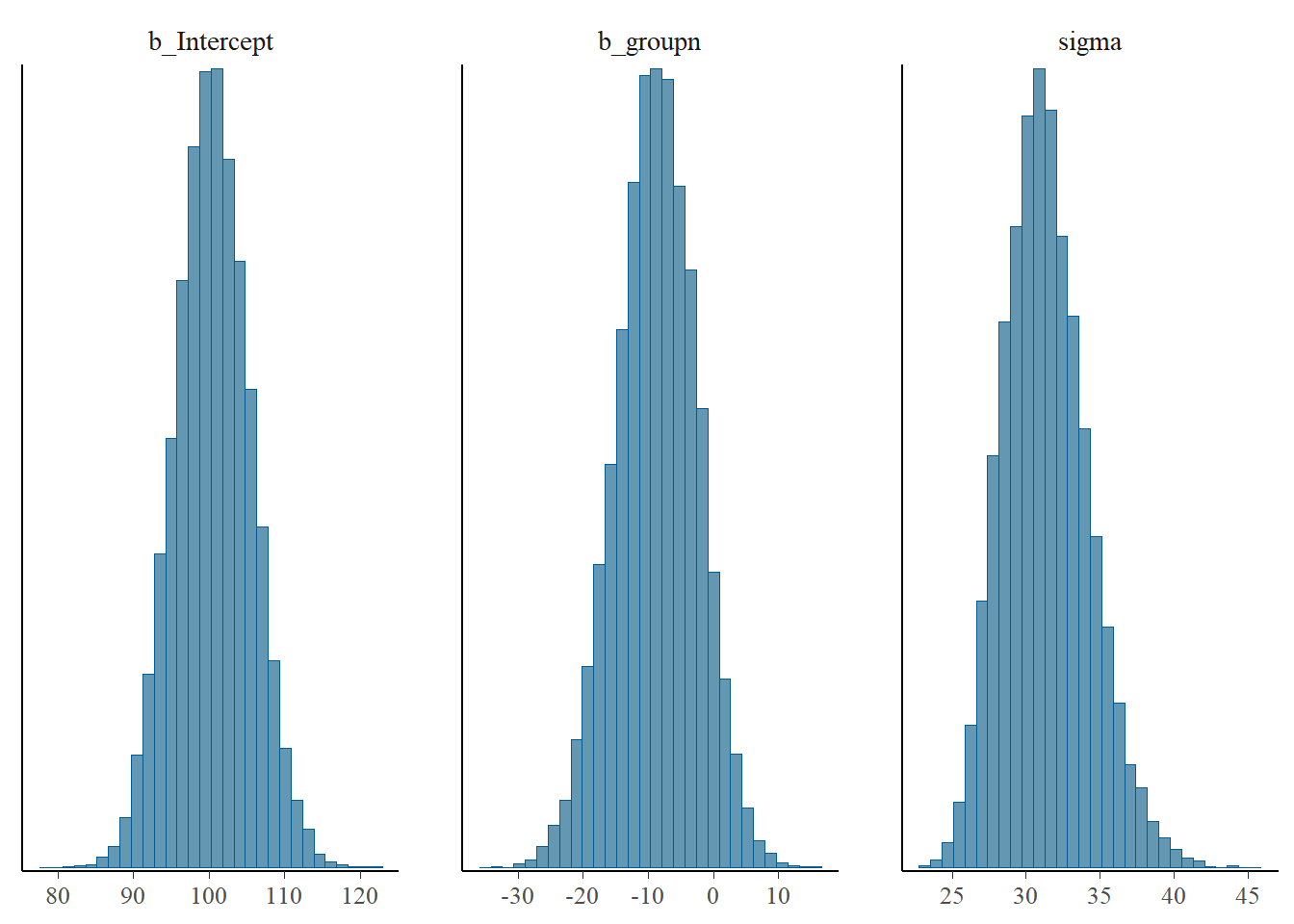

mcmc_plot(fit_lin_3, type="hist")

Warning in geom_histogram(set_hist_aes(freq), fill = get_color("mid"), color =
get_color("mid_highlight"), : Ignoring unknown parameters: `size`

Code

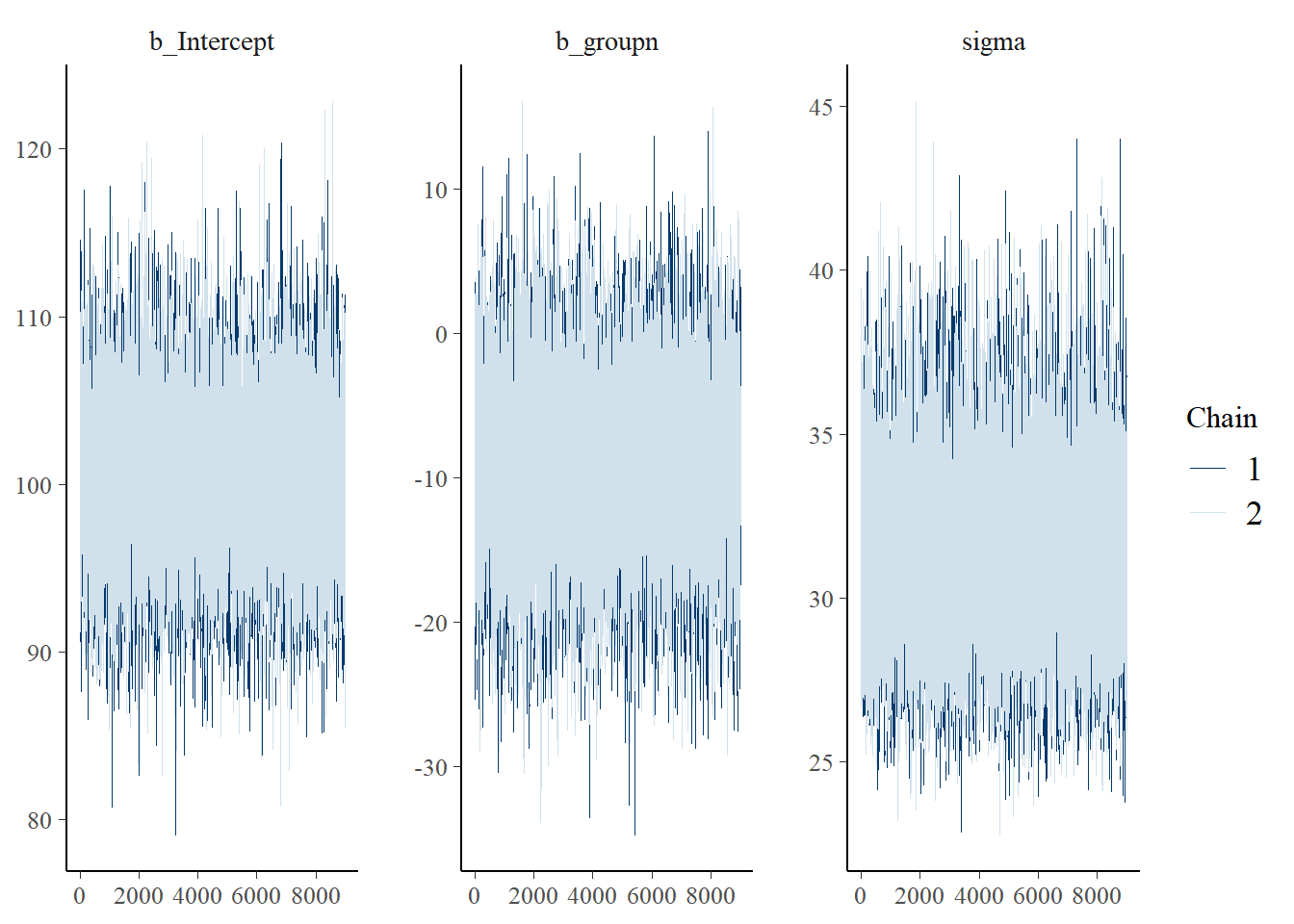

mcmc_plot(fit_lin_3, type="trace")

Code

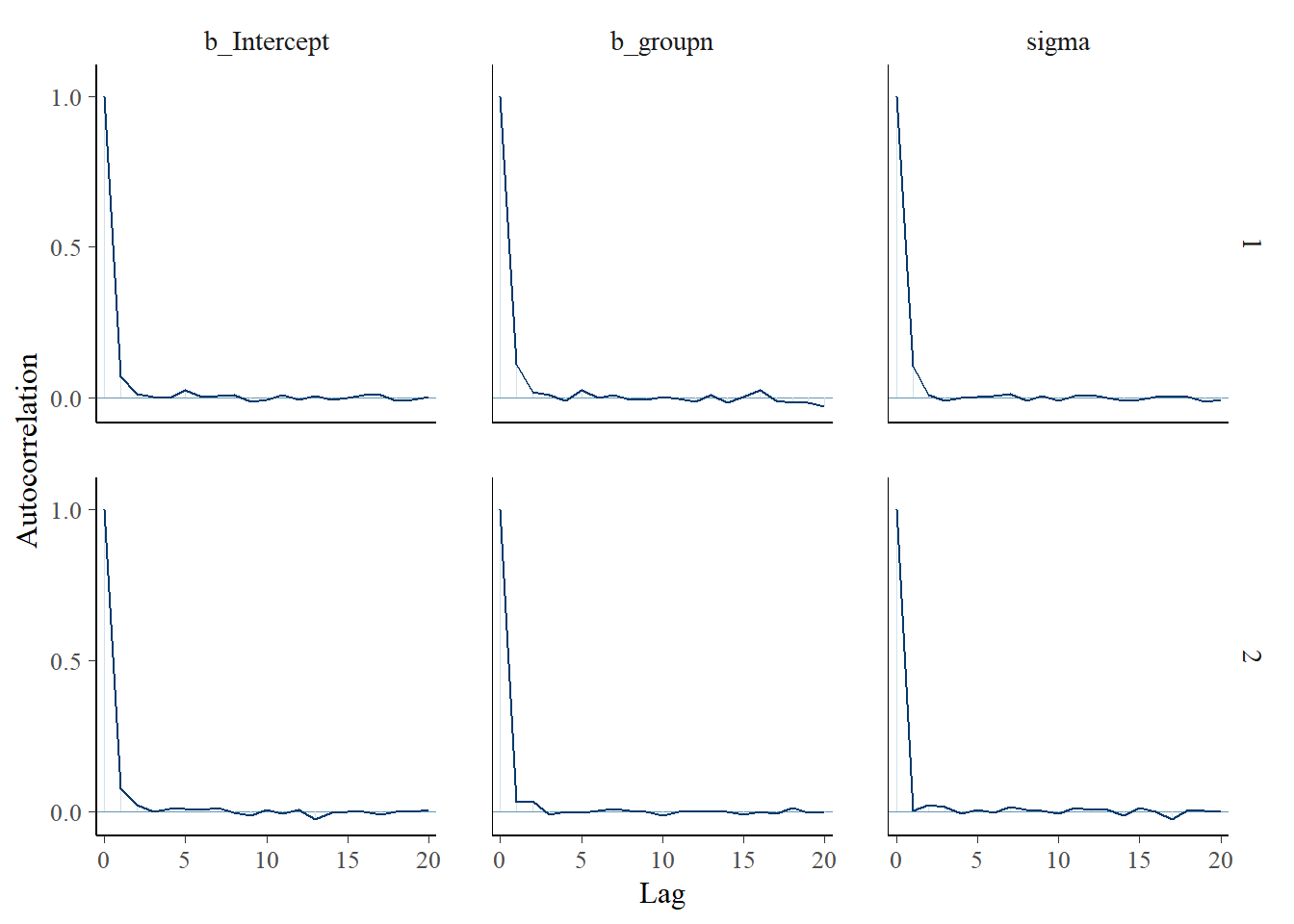

mcmc_plot(fit_lin_3, type="acf")

Code

prior_summary(fit_lin_3)

                prior     class   coef group resp dpar nlpar lb ub  source
               (flat)         b                                    default
       normal(-30,10)         b groupn                                user
        normal(0,100) Intercept                                       user
 inv_gamma(0.01,0.01)     sigma                               0       user

Code

# Extract posterior chains
post_samp3 <- as_draws(fit_lin_3)

xpost3 <- c(post_samp3[[1]]$b_groupn, post_samp3[[2]]$b_groupn)

# Calculate the posterior probability that our group predictor is less than 0
mean(xpost3 < 0)

[1] 0.9235

brms SLR with Skeptical Prior

In this example, we fit a “skeptical” prior on our treatment group such that \(\beta_1 \sim N(\mu=0, \sigma=10)\). This prior represents a skeptics belief that there is a meaningful treatment difference by centering the treatment effect at 0 with smaller variance than our vague prior.

Code

fit_lin_4 <- brm(in_phase_1_to_out_of_phase_2 ~ groupn,
                 data=trial,
                 family='gaussian',
                 prior = c(set_prior("normal(0,10)", class = "b", coef = "groupn"),
                           set_prior("normal(0,100)", class = "Intercept"),
                           set_prior("inv_gamma(0.01,0.01)", class="sigma")),
                 seed= 123,
                 init=list_of_inits,
                 warmup = 1000, iter = 10000, chains = 2, cores=4)

summary(fit_lin_4)

 Family: gaussian
  Links: mu = identity; sigma = identity
Formula: in_phase_1_to_out_of_phase_2 ~ groupn
   Data: trial (Number of observations: 66)
  Draws: 2 chains, each with iter = 10000; warmup = 1000; thin = 1;
         total post-warmup draws = 18000

Regression Coefficients:
          Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept    94.95      4.92    85.27   104.53 1.00    18329    12418
groupn        2.27      5.98    -9.59    14.05 1.00    17125    13003

Further Distributional Parameters:
      Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sigma    30.66      2.73    25.90    36.53 1.00    16139    13918

Draws were sampled using sampling(NUTS). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).

Code

bayestestR::hdi(fit_lin_4, ci=0.95) #get 95% HDP Credible Intervals

Highest Density Interval

Parameter   |         95% HDI
-----------------------------
(Intercept) | [85.18, 104.41]
groupn      | [-9.22,  14.32]

Code

plot(fit_lin_4)

Code

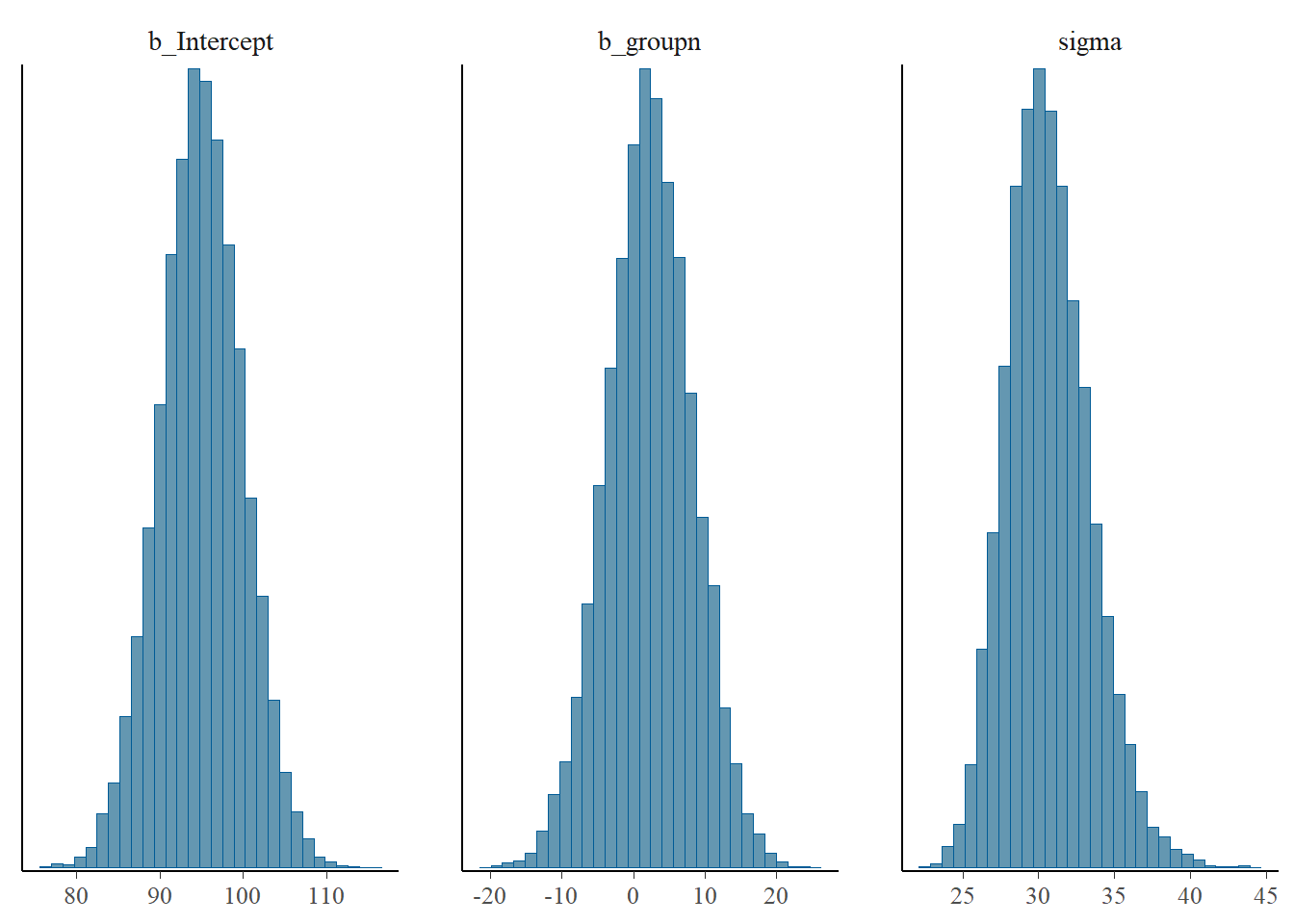

mcmc_plot(fit_lin_4, type="hist")

Warning in geom_histogram(set_hist_aes(freq), fill = get_color("mid"), color =
get_color("mid_highlight"), : Ignoring unknown parameters: `size`

Code

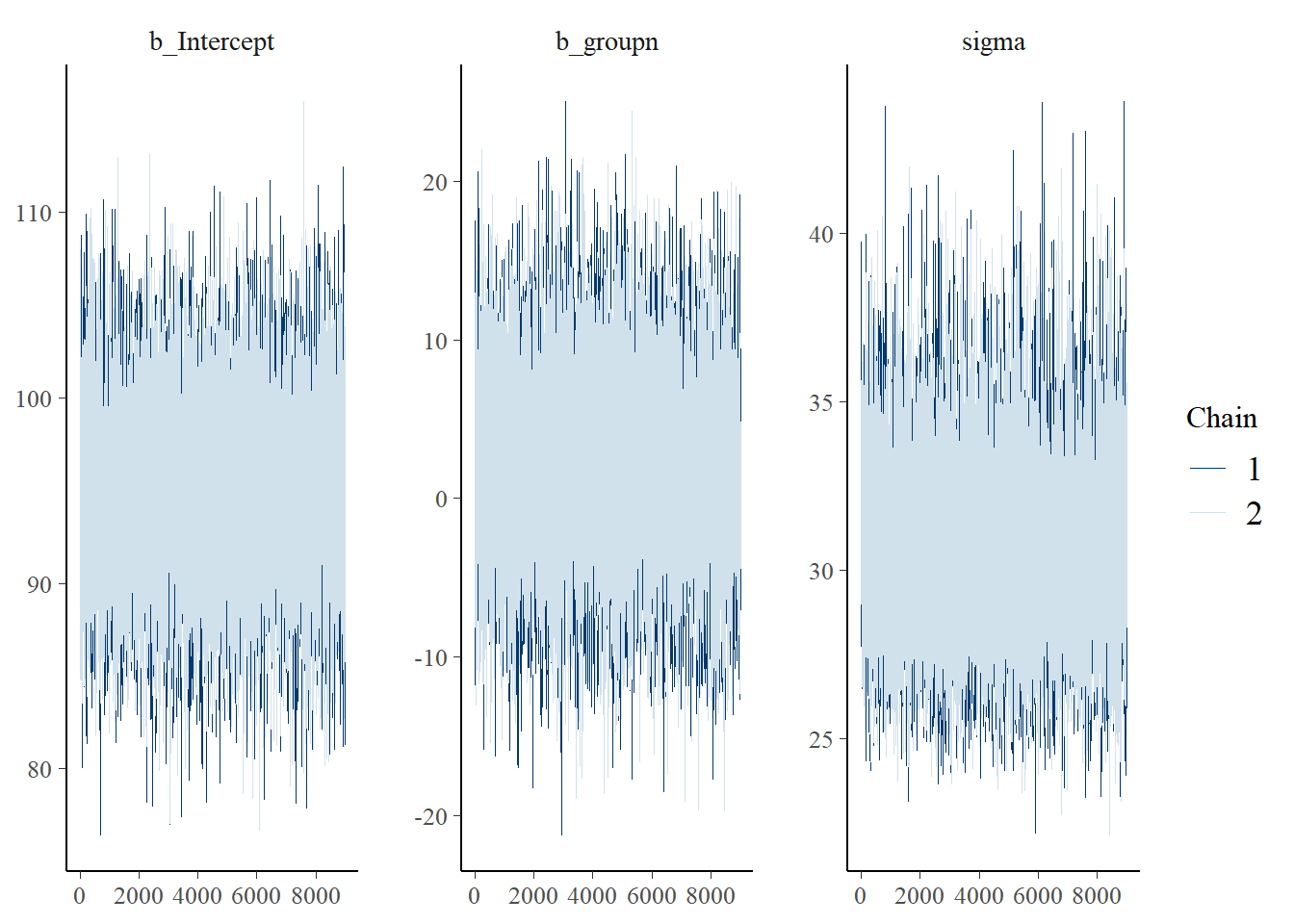

mcmc_plot(fit_lin_4, type="trace")

Code

mcmc_plot(fit_lin_4, type="acf")

Code

prior_summary(fit_lin_4)

                prior     class   coef group resp dpar nlpar lb ub  source
               (flat)         b                                    default
         normal(0,10)         b groupn                                user
        normal(0,100) Intercept                                       user
 inv_gamma(0.01,0.01)     sigma                               0       user

Code

# Extract posterior chains
post_samp4 <- as_draws(fit_lin_4)

xpost4 <- c(post_samp4[[1]]$b_groupn, post_samp4[[2]]$b_groupn)

# Calculate the posterior probability that our group predictor is less than 0
mean(xpost4 < 0)

[1] 0.3480556

References

Below are some references to highlight based on the slides and code:

A practical guide to adopting Bayesian analyses in clinical research: 2024 tutorial paper exploring the Bayesian approach to statistics and how to apply the methods for clinical trials
